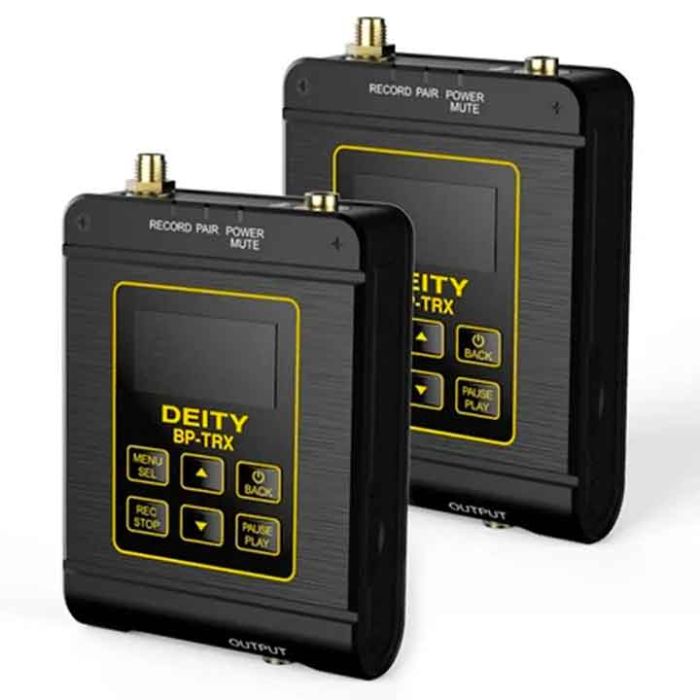

Deity Connect BP-TRX Wireless Microphone System

CONNECT-TC-KIT

The compact and lightweight BP-TRX units effortlessly attach to talent using belt clips. Equipped with locking 3.5mm input connectors, they support the included omnidirectional lavalier microphones. Adjustable input gain (-12 to +36 dB) and the Guard Rail limiter ensure distortion-free recordings, even with loud sources. Enjoy the convenience and worry-free operation of placing the recorder in the talent's pocket. Foam windscreens and lapel clips are also provided for added versatility.

Audio is recorded at a 24-bit / 48 kHz resolution to a microSD card (available separately) with a maximum capacity of up to 128GB.

Two Compact Audio Recorder/Transceivers with Lav Mics & Input Limiting
Each BP-TRX records 24-bit / 48 kHz audio to a microSD with a capacity of up to 128GB (available separately)

• Two omnidirectional lavalier microphones are included with foam windscreens and lapel clips
  Sennheiser-standard locking 3.5mm TRS input for compatibility with popular lavalier microphones such as the Sanken COS-11D, DPA CORE Series, Sennheiser ME 2-II, Deity W.Lav Pro, and others
• Accepts mic- or line-level signals
• Guard Rail analogue limiter reduces clipping and overloads at the input stage
• Selectable stereo line-level input mode
  -12 to +36 dB input adjustment
• Compact size with durable brushed-aluminium housing for durability
• Removable belt clip with 1/4"-20 thread underneath for camera mounting when used as a receiver
• Daylight-bright, high-resolution OLED screen shows statuses of all major features and real-time VU metering on the home screen
• Off / 20 / 200 Hz low-cut filter settings
• Off / +1dB to +10dB high-frequency boost at 7 kHz for added clarity and presence
• Screen and button lock to avoid accidents

When the two BP-TRX units are paired, they function as a digital wireless microphone system in the 2.4 GHz spectrum with a range of up to 328'. The receiving unit can be camera-mounted via a 1/4"-20 thread beneath the removable belt clip.

To record, connect the locking 3.5mm output to your camera's 3.5mm input using the included coiled cable. The unit cannot transmit or receive while recording to the microSD card. The transceiver design allows for a wide variety of uses, including IEM and camera-hopping applications, as the unit can pair with up to four BP-TRX receivers at once.

What's more, it enables control over numerous parameters on the transmitter—including input levels, low-cut filter settings, high-frequency boost options, and RF output adjustments—all remotely from the receiver.

2.4 GHz Digital Wireless System

• Use as camera-mountable wireless microphone system with a maximum range of 328'
• Remote control of many transmitter functions from BP-TRX receiver unit
• Pair with up to four BP-TRX units as receivers for camera-hop or IEM applications
• Proprietary encryption for secure transmission
• Internal antenna and removable external antenna with SMA connector to ensure reliable wireless performance
• Auto/manual RF power output adjustment from 10 to 100mW
• Automatic RF power mode increases battery life by never using more power than the system needs
• Assignable unique user ID
• Record function available when wireless operation is impractical

The onboard SMPTE timecode generator also outputs to the 3.5mm connector, allowing you to use it as a master clock and jam-sync the other BP-TRX unit or any other devices that support timecode.

The unit jam-syncs to incoming code via the same locking 3.5mm input used for the microphone. Timecode sync and audio cable are included that lets you record both signals to an external device.

Timecode Input and Output for Video Creators

• Timecode support makes it easy to sync sound and video
• Sync multiple devices to the BP-TRX's timecode generator via the 3.5mm output
• Jam-sync to incoming timecode via the 3.5mm mic input
• Timecode frame rates: 23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND, 30D
• With its 0.2ppm accuracy, the BP-TRX will only drift 1 frame every 24 hours
• When recording is done, simply drop the synced audio and video into your editing system for postproduction

Power is supplied by a built-in rechargeable battery, allowing the BP-TRX to operate for up to 12 hours when used in transmitter or receiver modes, up to 21 hours in record mode, and up to 25 hours as a timecode-only box. The USB Type-C charging port also functions as a stereo audio interface for Mac and Windows computers. Charging cables and removable antennas are included.

In the Box:

• 2 x Deity Microphones BP-TRX Compact Microphone Recorder and Wireless Transceiver with Timecode I/O (2.4 GHz)
• 2 x W.Lav Lavalier Microphones
• 2 x Cable Ties
• 2 x Lapel Clips
• 2 x Foam Windscreens
• 2 x USB Type-C Data/Charging Cables
• 2 x Timecode Sync and Audio Cables
• 2 x External Antennas for BP-TRX
• USB Type-C to USB Type-A Firmware Update Adapter
• Cold Shoe
• Locking 3.5mm to 3.5mm Coiled Cable

The Deity Connect BP-TRX Wireless Microphone System comes with a full Deity Australia warranty.
