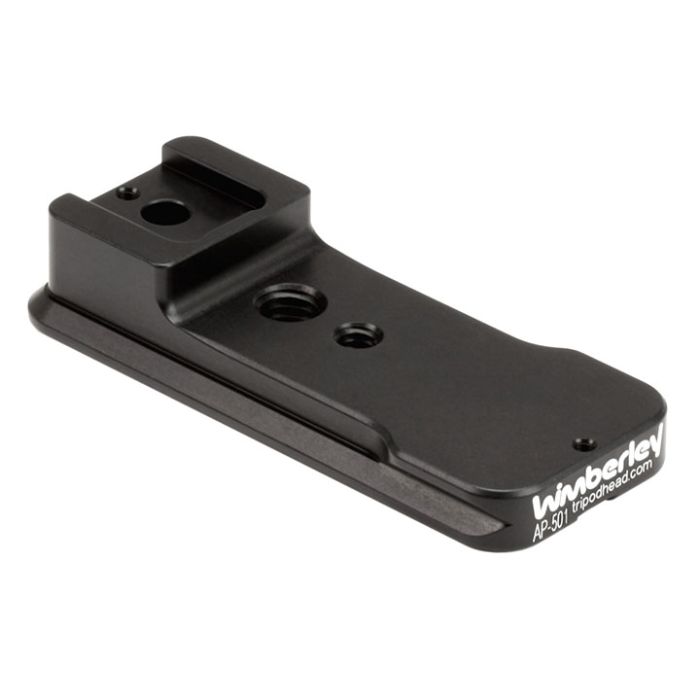

Wimberley AP-501 Replacement Lens Foot

AP-501

The AP-501 replaces the stock foot on Nikon Lenses (See list below, Image of compatibility chart, or our website).

The AP-501 is precision machined to slide right into an Arca-Swiss style quick-release clamp. It also has 1/4" and 3/8" tapped holes for mounting to non-quick-release tripod heads and monopods. All replacement feet feature the same dual safety stops and flash bracket compatibility as our lens plates.

For use on the following Lenses

• Nikon 70-200 f/2.8 Z VR S-Line Lenses
• Nikon 100-400 f/4.5-5.6 Z VR S-Line Lenses
• Nikon 400 f/4.5 Z VR S-Line Lenses

What's Included

• AP-501 Arca-Swiss Style replacement lens foot (Qty 1)
• Mounting Screw – ¼-20 x 9/16L Flat Head Socket Cap Screw (Qty 1)
• Safety Stop Screws - M3 x 6mm Socket Head Cap Screw (Qty 2)
• Hex Key – 5/32 (Qty 1)
• Hex Key – 2.5mm (Qty 1)


These custom low-profile replacement feet replace the factory foot on the rotation collar of your lens and also serve as the Arca-Swiss style quick-release plate for your lens. No additional quick-release plate is needed. It makes your lens handle better on a conventional tripod head, such as a ball head, and also makes it easier to pack.

Wimberley uses finite element analysis validated by empirical data when we design our feet. This process allows us to optimize the weight to stiffness ratio. Other manufacturers often reduce weight by removing material in ways that are convenient for the machining process or aesthetic design while ignoring stiffness performance resulting in rigidity below our quality standards.

Not compatible with most Manfrotto or Gitzo clamps

Wimberley AP-501 Replacement Lens Foot comes with a full Australian warranty from Wimberley Australia.
